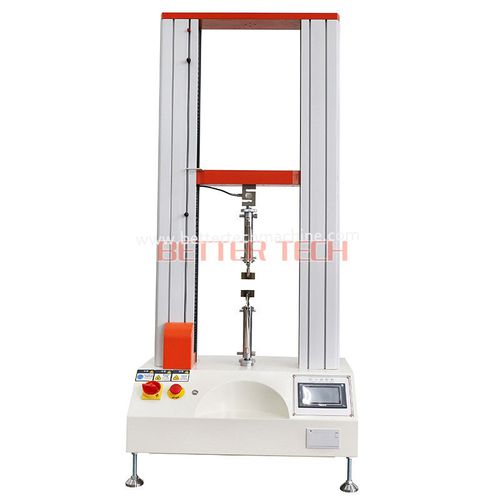

Tensile testing machine JWD-L1

tensionautomaticfor cables

This tensile load tester is designed for testing wire pull load on the vertical direction. Equiped printing function, this tensile tester make the testing processing more easier. By changing the fixture, it can test the physical properties of cables, metal, plastics, and rubber products. • It can test the physical properties of cables, metal, plastics, and rubber finished and semi-finished products. • The tester has a printing function, and it can output graphs according to different data groups, which is convenient for users to compare data. • Vertical tensile tester adopting modular design, and all kinds of accessories are complete and flexible. By using different fixtures can be used for tensile, compressive, tensile, compressive, bending, tearing, peeling, adhesion, shearing and other tests. • Capacity selection : 500KG/5000N • Test accuracy : 0.5 level , the accuracy of the test force indication is better than ±0.5%, • Load sensing : High-precision tension and pressure sensors , (multiple sensors can be installed at the same time – optional) • High resolution : 1/ 10 0000 • Magnification : 24-bit AD non-segment amplification • Unit selection : N, kN • Test speed range • Servo type: 0.05~500 mm/min stepless speed regulation • Non-servo type 100~500 mm/min or 10~100 mm/min or 50~300mm/min stepless speed regulation • When the speed is greater than 50 mm/min, the applied force should not be less than 25% of the maximum test force (GB/T 16491-1996) • Speed control accuracy : ±1% (Class 1) • Speed control accuracy : ±0.2% (Class 0.5) • Test effective width : Standard type: 40 0 mm (or customized according to customer requirements)
