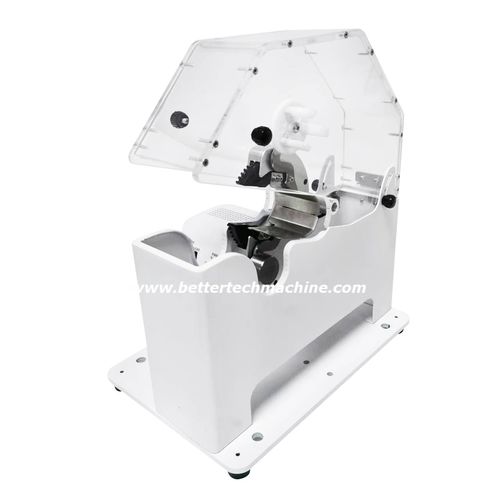

Wire harness taping machine JWD-WT35

for pipes

Electrical Tape Wrapping Machine for Convoluted Tubing and Harness Model   JWD-WT35 Brand   BETTERTECH High-quality continuous tape winding of wire harnesses or hoses with a wide range of tapes. This tape winding machine can wind items with diameter up to 35mm. The main machinery body of tape winding machine JWD-WT35 is sturdy but lightweight(12kg), and the ergonomic mechanical design completely reduces stress on the operator's wrist. The tape winder is equipped with a transparent protective cover for the user's safety. Model - JWD-WT35 Tubing diameter - 5~35mm Tape width - 5~25mm Tape roll outer diameter - ≤110mm Tape roll inner diameter - 25mm 32mm 38mm Wrapping speed - 150~500 rpm Power supply - 100V-240V 50/60Hz Dimension - 200mm×300mm×338mm Packing dimension - 250mm×350mm×400mm Packing weight - 8.5kg
