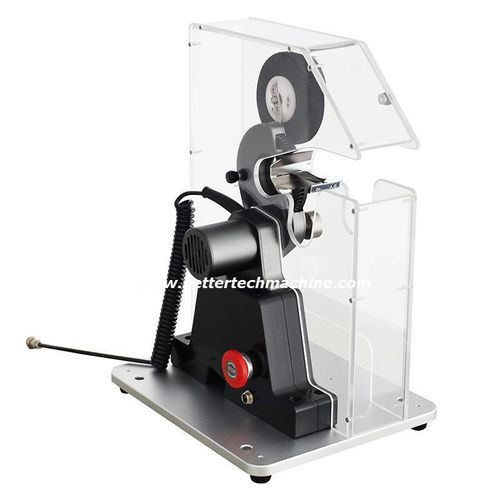

Wire harness taping machine JWD-WT200D

for lens protection

High-quality continuous tape winding of wire harnesses or hoses with a wide range of tapes. This tape winding machine can wind items with diameter up to 35mm. The main machinery body of tape winding machine is sturdy but lightweight (12kg), and the ergonomic mechanical design completely reduces stress on the operator’s wrist. The tape winder is equipped with a transparent protective cover for the user’s safety. - The integrated toothed cutter and hidden protective cutter cuts tape of any material. After cutting the tape, the tape automatically jumps to the next position, ready for the next step without additional processes. - Turntable opening design allows users to skip branches when tapes are wrapped continuously. - Spot winding lap setting function, when starting the machine in single time, you can choose the number of winding between 2-15 laps. - Adjustable speed, a total of 10 gears speed adjustable. Model: JWD-WT200D Diameter Range: 8mm ~ 35mm (Oversize can make customization) Speed: 180~400 Core Sizes: 25mm 32mm 38mm (1″ 1.25″ 1.5″) Tape Width: 5 – 25mm Max Tape Roll Diameter: 110mm Power Supply: 110/240V 50/60Hz Dimensions: 300mm×480mm×520mm (L×W×H) Weight: 12kg
