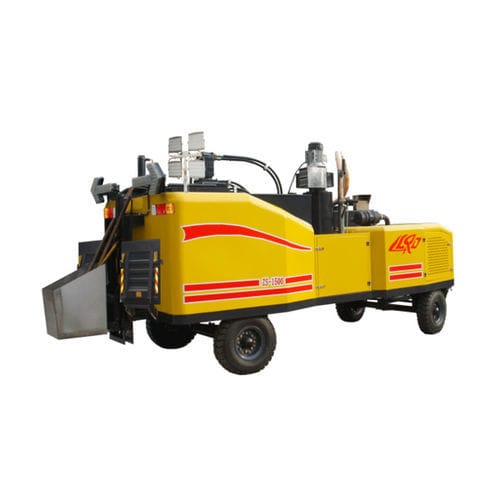

Asphalt recycler ZS-1500

ZS-1500 hot asphalt recycling equipment, is designed for solving many kinds of road problems, such as potholes, cracks, road bloat, pavement depression, net-shaped cracking, etc. It could realize flexible and quick operation, safety, high efficiency and environmental protection. Various on-site maintenance operations could be conducted. It has the characteristics of quick repairing and low cost, and could work around the clock. In addition, the waste materials excavated from the road surface can be recycled on-site without crushing first. Our equipment could be applied for the treatment of forced mixing of asphalt mixture, asphalt spraying and pavement’s cracks. It has obtained many patents and has passed the identification from national testing department 2.Parameter 1) Propelling Mode: Traction type 2) Engine: Original imported Yanmar engine 19.6KW 3) Burner: Riello 4) Dedusting method: cyclone dust removal 5) Dust removal ability: 1000m³/h 6) Volume of asphalt tank: 200L 7) Electric heating hose of asphalt spraying / crack sealing: 4M 8) Temperature control: Computer control 9) Heating time: 45 min 10) Asphalt burner: 50000 Kcal 11) Recycling system of material tank: The burner is heated by hot-resistant plate indirectly + Hot air heating 12) Recycling capacity: 2-3 ton/h 13) Recycling capacity per time: 500kg/10min 14) Material feeding mode: single hydraulic cylinder lifting 15) Mixing Mode: Driven by hydraulic motor, vertical forced mixing 16) Mixing burner: 100000 Kcal
