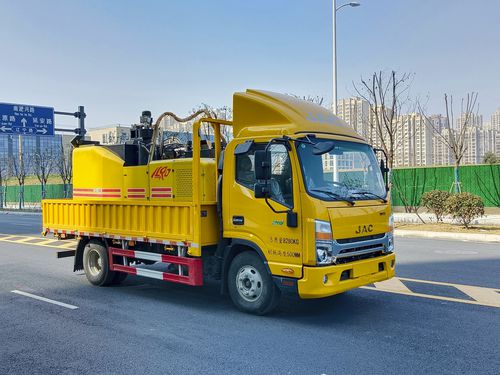

Transport truck 2-axlediesel engine
Add to favorites
Compare this product
Characteristics
- Function
- transport
- Number of axles
- 2-axle
- Engine type
- diesel engine
- Power
20 kW
(27 hp)
Description
EMISSION STANDARD
-
NATIONAL EMISSION Ⅵ
Wheelbase（mm）
-
3365
Cabin(Person)
-
3
Max. Speed（km/h）
-
110
2
-
Road maintenance truck parameter
-
Propelling Mode
-
Traction type
Engine
-
Original imported Yanmar 3TNV engine
Power（kw）
-
19.6
Burner
-
Italy imported Riello diesel burner
Dedusting method
-
cyclone dust removal
Dust removal ability（m³/h ）
-
1000
Volume of asphalt tank（L）
-
200
Heating method
-
Indirect heating by transfer oil
Electric heating hose of asphalt spraying / crack sealing
-
220V Full electric heating tube 4m in length, can rotate 360 degrees
Temperature control
-
All digital Computer control
Heating time（min）
-
45
Asphalt pump
-
Decentralized built-in pump, pressure:0.4MPa
Asphalt burner（Kcal）
-
50000
Recycling system of material tank
-
The burner is heated by hot-resistant plate indirectly plus Hot air heating
Recycling capacity（t/h ）
-
2-3
Recycling capacity per time
-
500kg/10min
Material feeding mode
-
single hydraulic cylinder lifting
Mixing Mode
-
Driven by hydraulic motor, vertical forced mixing
Mixing burner（Kcal）
-
100000
