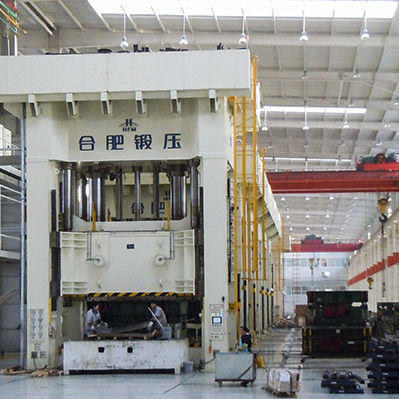

Hydraulic press YH28
stampingdrawingframe

hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
stamping, drawing
Structure
frame, double
Other characteristics
blank, for sheet metal

Description

YH28 Series Double Action Hydraulic Press This serial press with drawing and blank holder slide, the four points pressure of blank holder can be adjusted to achieve high quality of drawing with asymmetrical parts, through the hydraulic pin connection put the double slides as single slide, and expand the applications. It’s mainly used for drawing in Aerospace and automobile industry etc. Applications: Stamping and drawing for sheet metal . Characteristics: The press structure is frame type with tie-rod pre tightening, double slides with 8 fold guide way. The double slides can be locked as single one. Various way of moving bolster: front, lateral, T-travel type. Full digital control of press parameter, pressure closed loop control. Blank holder slide pressure subdivision control. Hydraulic cushion pressure subdivision control. Mold parameter storage and the failure diagnosis. The full arrange of safety devices and safety control system. No-pressure moldalignment, convenient for aging mold. Optional configuration: Four points flexible control hydraulic pad. Four points flexible control for blank holder slide. Mold identification system. Quick die clamping device. Automated connection or automated connection interface
