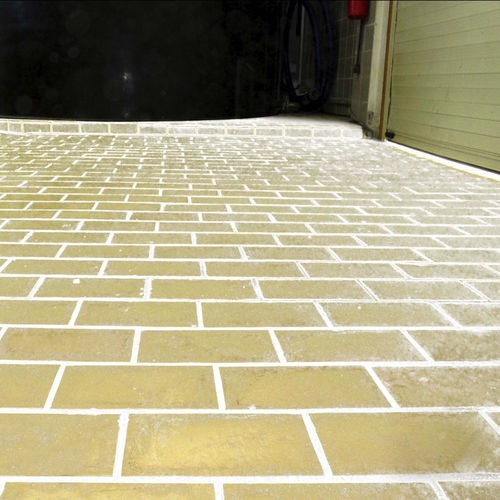

Refractory brick UltraTile R10

Overview
HEGGEL mortars and tiles are acid- and alkali-resistant products formulated for the chemical and process industries. Designed for bedding, jointing and linings, the range provides mechanically and chemically resistant coatings for floors, tanks and exposed surfaces. Key binder systems include furan, phenolic, vinyl ester, epoxy (including novolac), potassium/sodium-silicate and unsaturated polyester.

Key products and descriptions
HEGGEL® EP 610
Temperature-resistant epoxy-resin based mortar.

• Description: Two-component, resilient, temperature-resistant epoxy mortar.
• Characteristics:
• Resilient at elevated temperatures
• Temperature resistance up to +150°C on steel substrates

HEGGEL® EP 611
Wear-resistant epoxy filler system.

• Description: Highly wear-resistant filler with hard material fillers based on epoxy resin.
• Characteristics:
• Short curing time
• High abrasion resistance
• Jointless application possible
• Overhead application possible
• Layer thicknesses from 5 mm to 40 mm
• Temperature resistance up to +150°C on steel substrates

HEGGEL® PL 620
Synthetic phenolic resin mortar.

• Description: Two-component mortar based on modified phenolic resole resin with carbon filler for bedding and jointing acid-resistant ceramic or carbon bricks.
• Characteristics:
• Excellent adhesion to ceramic and carbon bricks
• Very high chemical resistance to acids, solvents and weak oxidisers
• Hardened mortar conducts electricity
• Suitable where pre-stressing of lining is required

HEGGEL® PL 621
High-performance phenolic mortar.

• Description: Black, two-component cold-curing synthetic mortar with carbon fillers.
• Characteristics:
• Excellent adhesion
• Extremely high chemical resistance to acids and solvents
• Electrically conductive when cured
• Stable storage (no water separation)
• Good application using dust-free fillers

HEGGEL® FU series (631 / 632 / 633 / 636 / 637 / 638 / 639)
Furan resin based mortars with carbon fillers and variants (aldehyde-free, HF-resistant, three-component systems).

• General descriptions: Two- or three-component furan mortars for bedding, jointing and linings with high chemical and thermal resistance.
• Key characteristics:
• Temperature resistance from ~180°C up to 350°C (product dependent)
• Excellent resistance to strong acids including hydrofluoric acid for specific grades
• Rapid setting and high mechanical strength for selected formulations
• Electrically conductive options for dissipative floors

HEGGEL® VE / PS / SP series
Vinyl ester, polyester and silicate-based mortars for specialised requirements.

• VE series: Epoxy novolac vinylester mortars with excellent bonding and resistance to acids, alkalis and oxidisers; some carbon-filled grades are electrically conductive.
• PS series: Unsaturated polyester mortars for HF resistance and convenient installation.
• SP series: Potassium/sodium-silicate (water-glass) systems formulated for extreme acid resistance and high-temperature refractory performance (service temperatures up to ~900°C for refractory grades).

HEGGEL® Tiles & Bricks
Acid-resistant ceramic tiles and carbon bricks designed for use with HEGGEL mortars to protect surfaces in aggressive environments.

• Product families: UltraTile, UltraBrick, MegaTile, MegaBrick, ProTile, ProBrick, SuperBrick, CarbonBrick (various slip and mechanical classes).

Technical specifications

• Primary binder systems: Furan, Phenolic, Vinyl Ester, Epoxy (incl. Novolac), Potassium/Sodium-silicate, Unsaturated Polyester.
• Chemical resistance: Grades available for a broad range of inorganic and organic acids, alkalis, solvents, hydrocarbons, oils and fuels; selected grades resist hydrofluoric acid and strong oxidisers.
• Temperature ranges (examples): FU 632 up to 280°C immersed (350°C short-term); EP series commonly up to ~150°C on steel; SP refractory grades up to ~900°C.
• Mechanical features: High strength, abrasion/wear-resistant options, electrically conductive variants for ESD/dissipative systems.
• Application properties: Cold-curing and heat-resistant variants, rapid-setting systems, overhead-capable fillers, thickness ranges typically 5–40 mm, castable grain sizes available.

Applications

• Tank and vessel linings, chemical processing floors, refinery and petrochemical installations, pickling and etching areas, waste treatment facilities, and any environment requiring acid/chemical-resistant surface protection.

Storage & handling

• Certain aldehyde-free and furfural-free grades offer improved storage stability. Follow product-specific datasheets for mixing ratios, curing conditions, safe handling and disposal instructions.
