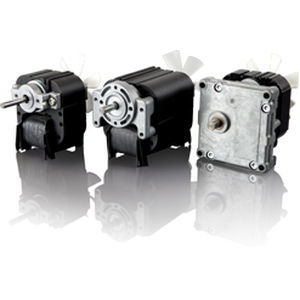

Shaded-pole motor
single-phaseasynchronous230 V

shaded-pole motor
shaded-pole motor
shaded-pole motor
Add to favorites
Compare this product


Characteristics

AC/DC
single-phase
Type
asynchronous
Voltage
230 V
Protection class
robust, maintenance-free
Configuration
squirrel cage, with brake, shaded-pole
Number of poles
2-pole
Cooling mechanism
self-ventilated
Applications
for ventilators, for medical equipment, packaging machine, for refrigerators
Other characteristics
low-noise, with speed controller
Power

Max.: 29.4 W
(0.04 hp)

Min.: 0.7 W
(0.001 hp)

Torque

Max.: 0.108 Nm
(0.0797 ft.lb)

Min.: 0.0026 Nm
(0.0019 ft.lb)

Rotational speed

Max.: 2,600 rpm
(16,336.28 rad.min-1)

Min.: 2,200 rpm
(13,823.01 rad.min-1)

Description

Heidrive shaded-pole motors are asynchronous squirrel-cage motors for connection to single-phase alternating current. They are characterised by high reliability, long durability and absolute freedom from maintenance. Electronic speed controls, various Motor brakes, gears and fan blades make our shaded-pole motors even more flexible and universally applicable. Powerful and reliable shaded-pole motors from Heidrive The shaded-pole motor has been produced at Heidrive for around 70 years. Heidrive therefore offers you a constantly optimised and high quality selection of powerful shaded-pole motors. The shaded-pole motor up to 30 W is an asynchronous squirrel-cage motor for connection to single-phase alternating current. This motor rotates in 2-pole design with a nominal speed of approx. 2,200 to 2,600 rpm at 50 Hz, whereby both clockwise and anticlockwise rotation can be mechanically implemented. Thus, well-known customers from various industries can choose between different voltages as well as various gearboxes. In addition to high performance, our shaded-pole motor is characterised by absolute reliability, robustness, very quiet running and a long service life, especially with the ball-bearing design. Furthermore, our motors are absolutely maintenance-free. As an option, the motors are also available ventilated and combinations with gearboxes up to 2 Nm torque are possible. The shaded-pole motors enable cost-effective drive solutions in all areas of electrical engineering, mechanical engineering, equipment and apparatus construction.
