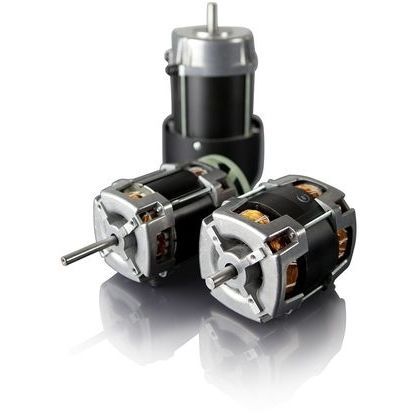

Capacitor motor
three-phaseasynchronous220 V

capacitor motor
capacitor motor
Add to favorites
Compare this product

Characteristics

AC/DC
three-phase
Type
asynchronous
Voltage
220 V, 110 V
Other characteristics
4-pole, 8-pole, 2-pole, high-speed, capacitor, squirrel cage
Torque

Min.: 0.042 Nm (0.031 ft.lb)

Max.: 1.45 Nm (1.0695 ft.lb)

Power

Min.: 11 W (0.015 hp)

Max.: 403 W (0.548 hp)

Rotational speed

Min.: 1,200 rpm (7,539.82 rad.min-1)

Max.: 2,750 rpm (17,278.76 rad.min-1)

Diameter

Min.: 58 mm (2.28 in)

Max.: 90 mm (3.54 in)

Description

General information: Capacitor motors are asynchronous squirrel-cage motors for connection to AC voltage. Three-phase motors are asynchronous squirrelcage motors for connection to three-phase current. Options: - Encoder - Break - Axial fan - Special shaft - Special flange - Connection in different types - Finishing - Adjustment of characteristic curves High quality and wide range Capacitor motors are characterized by: - Total reliability - Long service life - Different capabilities - Maintenance-free Three-phase motors are characterized by: - Total reliability - Long service life - Different capabilities - Maintenance-free - Round, balanced operation, symmetrical rotating field - High starting torque - High efficiency Concerning the construction the capacitor motors are equivalent to the three-phase motors. They are used for operation on a single-phase network. For reasons of noise optimization the motors are laid out with four poles. If desired, the motors can also be provided with other speeds.
