Diesel side loader DuraPack Python&reg

ride-onfor the recycling industryfor trucks

Overview

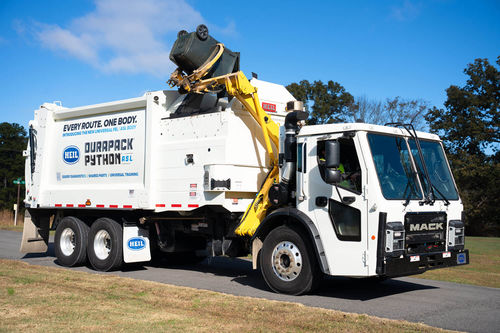

The DuraPack Python Side Loader is an automated side-load refuse body designed for high-route productivity and reduced operating cost. It combines a DuraPack structural body with the patented Python lift arm to deliver fast cycles, increased payload and long service life.

Key benefits

• Fast lift cycle with Auto Lift for one-button dump operation.
• Continuous dumping via follower panel to minimize stop-to-stop delays.
• Increased payload using twin packing cylinders to reduce disposal trips.
• Durable construction with high-tensile steels and AR400 abrasion-resistant hopper components.

Performance & Productivity
The DuraPack Python achieves an industry-leading lift cycle of approximately 8 seconds, improving route throughput and lowering operating expense. Faster cycles and continuous dumping capability reduce time per stop and can materially affect annual collection costs.

Durability & Construction
Body construction uses 7- and 8-gauge high-tensile steel. Hopper wear surfaces include a 1/4-inch AR400 floor and 3/16-inch AR400 sides to resist abrasion and compaction. A fully welded, interlaced subframe resists abrasion, corrosion and salt damage. The reinforced tailgate with a 60-inch seal reduces leakage and contamination.

Python Arm & Lift System
The patented Python arm provides smooth, controlled motion and long life. Key features include:

• Lift capacity up to 800 lb (≈363 kg).
• Cushioned cylinders for smoother motions and reduced wear on chassis and arm.
• Hardened grabber gears and alloy-steel components rated for up to ~1,000,000 cycles.
• Precision geometry to minimize spillage and ensure carts return with lids closed.

Operator Experience & Controls
Ergonomic, driver-focused controls reduce cab clutter and simplify operation. The in-cab display provides real-time feedback, full body control, diagnostics and camera integration. Auto Lift automates raising to dump position with a single press.

Maintenance & Reliability
Design features reduce downtime and simplify servicing: Heil DuraMount secures the lift to chassis frames to reduce bolt fatigue; Service Smart bolt access improves serviceability; tailgate cylinders and service items are positioned for cleaner access and reduced contamination.

Common Body Strategy
The DuraPack Python uses a universal FEL/ASL common body design to increase parts commonality across front-end and side-load fleets, reducing parts inventory and simplifying technician training.

Optional / Add-on Features

• Integrated Lift Cam/Light package for improved lift visibility.
• CNrG integrated tailgate fuel delivery system for CNG trucks.
• 3rd Eye Digital Package (factory-installed 3rd Eye Mobile) for body/chassis data, service verification, fuel tax reporting and support for up to six cameras.
• 3rd Eye Safety Technology with AI-powered safety features, 360° visibility and reverse automatic braking.

Resources & Media
Product resources include videos, brochures, maintenance guides and a photo gallery showing the DuraPack Python in operation and detailed component views.

Technical specifications

• Commercial designation: DuraPack Python®
• Typical lift arm capacity: up to 800 lb (≈363 kg)
• Lift cycle: approximately 8 seconds
• Body material: 7- and 8-gauge high-tensile steel
• Hopper floor: 1/4-inch AR400 abrasion-resistant steel
• Hopper sides: 3/16-inch AR400 abrasion-resistant steel
• Packing: Twin packing cylinders for increased payload
• Continuous dumping: Follower panel allows continuous dumping during pack cycle
• Python arm life: Hardened grabber gears and alloy-steel components designed for up to ~1,000,000 cycles
• Tailgate: Reinforced tailgate with 60-inch seal; tailgate cylinders positioned to reduce payload contamination
• Operator interface: In-cab display for full body control, diagnostics and camera feed integration
• Optional telematics/third-party: Factory-installed 3rd Eye® Mobile for data, up to six cameras and safety integrations
• Design goals: Optimized for route productivity, durability, reduced downtime and lower total cost of collection
