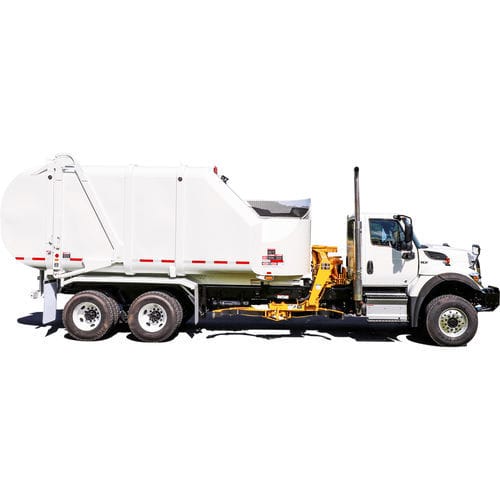

Diesel side loader Rapid Rail®

ride-onfor containerslow-noise

Overview
Heil®'s Rapid Rail Continuous-Pack Side Loader is a continuous-pack automated side loader engineered for efficient automated refuse collection. It combines a long-reach lift arm, a patented continuous paddle packer and optimized structural design to support high productivity, reduced downtime and compatibility with diesel, CNG rooftop storage and electric vehicle applications.

Key benefits

• Patented continuous paddle packer that sweeps the hopper to eliminate pause-and-pack cycles and prevent bridged loads
• High-reach automated lift arm with fast cycle times for efficient curbside collection
• Optimized structural and weight design to improve payload and suitability for electric and three-axle chassis
• Redesigned grabber gears and components for extended service life and reduced maintenance

Standard Features

• PATENTED PADDLE PACKER continuously sweeps the hopper so the operator can collect without stopping to cycle the packer
• 2x INCREASED PADDLE LIFE through new materials, welding procedures, improved spline design and bearing upgrades
• NEW PACKER SHAFT SEAL DESIGN that minimizes leaks and is easily replaceable
• UPPER AND LOWER BEARING GREASE LINES (hard-tube lube lines) for ground-level grease application
• UNIQUE LIFT GEOMETRY providing a direct line to the hopper with no kick-out for operation in tight spaces
• RAPID RAIL GRABBER GEARS made from high-strength, low-alloy steel and hardened for high-cycle durability
• QUIET, FUEL-EFFICIENT OPERATION with an Operate-in-Gear-at-Idle system to reduce fuel use and noise
• EASILY ACCESSIBLE HYDRAULICS located in Service Smart positions for ground-level maintenance
• NO PACKER PANEL—rotating packer removes the need for sliding panels, shoes and guide tracks
• ENHANCED VISIBILITY options for left-side driving and compatibility with cab-over or conventional cabs
• MOBILE CONTROLLER providing on-board intelligence, simplified servicing and precise control
• RAPID RAIL AUTOMATED LIFT handling containers from 30 up to 300 gallons; redesigned lift includes a six-roller carriage for even load distribution

Optional Features & Packages

• Select-O-Pack: operator-selectable number of lift cycles before auto-pack engages to extend paddle life
• Optional 300-GALLON GRABBERS for larger commercial containers
• ROOFTOP CNG STORAGE option for CNG fleets to maintain productivity with fuel savings
• SB-1383 ROUTE READY / ORGANICS COLLECTION: weight-optimized body and configuration ideal for electric vehicle organics routes
• 3RD EYE DIGITAL PACKAGES: factory-installed telematics/digital packages including mobile unit, radar and support for up to six cameras

Hotspot / Design Highlights

• Connected Collections ready for fleet connectivity and monitoring
• Select-O-Pack for operator control and extended packer life
• Big Swing paddle packer and improved shaft seal design for leak prevention
• Hardened grabber gears and six-roller carriage for longer service life
• Optimized weight body to improve payload and meet weight-restricted applications

Characteristics / Technical specifications

• Commercial series: Rapid Rail®
• Body type: Continuous-pack automated side loader
• Compatible container sizes: 30 to 300 gallons (optional 300-gallon grabbers)
• Packer: Patented continuous paddle packer (Big Swing paddle design) with Select-O-Pack functionality
• Lift: Automated side-lift arm with long reach and fast cycle time; six-roller carriage for even load distribution
• Grabber gears: Hardened, high-strength low-alloy steel; splined to grabber shafts for high-cycle durability
• Maintenance: Hard-tube grease lines to upper/lower bearings; replaceable packer shaft seal; hydraulics in service-accessible locations
• Power / fuel: Designed for diesel; optional rooftop CNG storage; body optimized for electric vehicle applications (improved vehicle range and payload)
• Connectivity: Optional factory-installed telematics/digital packages (3rd Eye Mobile, radar, multi-camera support)
• Operator benefits: Improved visibility, quiet operation, fuel efficiency (Operate-in-Gear-at-Idle), reduced downtime
• Service & durability: Redesigned components increase paddle life (~2x) and reduce packer leaks; fewer wear items due to no packer panel
• Typical applications: Residential and commercial routes, organics collection, mixed routes, weight-restricted or narrow/obstacle routes
