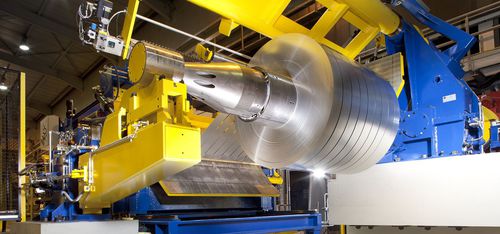

Automatic coiler

automatic coiler
automatic coiler
Add to favorites
Compare this product




The most essential parameters - Straight-edged coiling of edge-trimmed or cut-in-length bands while maintaining a defined constant tension - Coiler for coil weights between 5 and 40 t - Strip widths from < 20 mm to up to 2,400 mm - For various coil inner diameters (406, 508, 610 to 762 mm) - Clamping of the single bands via clamping chase, on sleeve or winding via belt wrapper - Different coil diameters by means of exchangeable top segments, rubber sleeves, replaceable shafts exchangeable head support with automatic hydraulic shaft clamping, connectable flange shafts - Above 20 t with bearing pad and roll - For strip speeds from 60 m/min to 1,800 m/min - AC- or DC-powered
