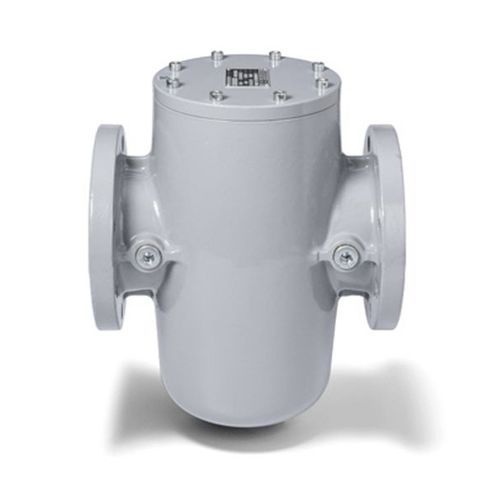

Flange filter PS 5

gasdustindustrial

Flange gas Filter PS 5 with HTB certificate (straight way) Accreditations: DVGW-G (DIN 3386) Gas Appliances Regulation (EU) 2016/426 Pressure Equipment Directive 2014/68/EU for separation of dirt and dust particles from gas accordance with DVGW code of practice G 260 and air PS 5 = PS max. 5 bar, TS –10°C to +80°C, grade of filtration appr. 50 μm HTB PS max.5 bar (HTB-tested 650° C - 30 minutes) Gasfilter Straight Way: drillings with plug, each 1x in the entrance and exit, DN 25 - DN 40: G 1/4 left side, DN 50 - DN 150: G 1/2 right side Correct and proper use Gas- and air filter for the protection against blockage of devices and fittings connected downstream. Suitable for separation of gas-carried dust- and dirtparticles from natural gas, town gas, liquid gas (gaseous) and air, in accordance with DVGW code of practice G 260. Construction – housing GJS-400-18U-LT – cover S235 JRG 2 – flanged connections DIN EN 1092 PN 16 (see page 4) – filter pad polypropylen fleece, jackstay steel galvanised – cover seal NBR – DN 25 - DN 40 with drilling G 1/4 DIN EN ISO 228-1 (with plug) left at the inlet and the outlet DN 50 - DN 150 with drilling G 1/2 DIN EN ISO 228-1 (with plug) right at the inlet and the outlet, vent connection G 1/2 DIN EN ISO 228-1 (with plug) in the bottom
