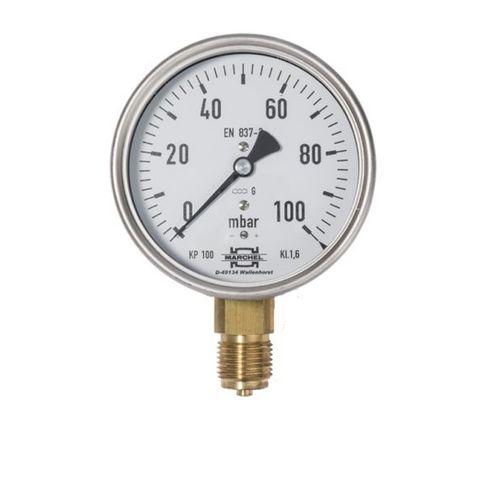

Analog pressure gauge KP 100 series

threadedR 1/2stainless steel

Pressure gauge with capsule element class 1.6, with zero adjustment for pressure indicating according for gas accordance with DVGW code of practice G 260 and air housing stainless steel Ø 100 mm, measuring element copper/brass (CuBe) connection R 1/2 radial, TS -20°C to + 60°C, overload safety 1.3 times Correct and proper use Suitable to measure of pressures. For natural gas, town gas, liquid gas (gaseous) and air in accordance with DVGW code of practice G 260. Construction housing/bayonet ring stainless steel, front glass instrument glass, NG 100, connection G1/2B bottom capsule pressure gauge KP 100 – according to EN 837-3, class 1.6 – protection IP 54 (EN 60529) – with zero correction, from the front – measuring element CuBe alloy – connection brass – movement brass bourdon tube pressure gauge RF 100 – according to EN 837-1, class 1.0 – protection IP 54 (EN 60529) – safety version S1 (EN 837-2) – with blow out – measuring element copper alloy – connection brass – movement brass General dates – only for vertical installation in the building inside – overload safety = 1,3 x full scale value – static load = full scale value, dynamic load = 0,9 x full scale value
