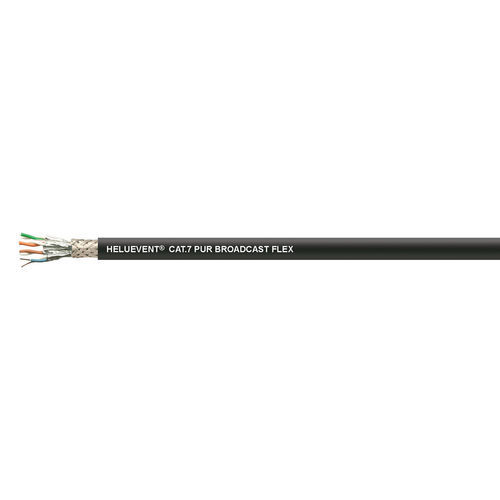

Electrical data cable HELUEVENT® BROADCAST FLEX

pairedcopperPUR

Product summary
UV resistant. Extremely flexible. Halogen-free. PiMF: Pair in Metal Foil.

Item Details
Part no.: 11029360
Item description: HELUEVENT® CAT.7 S/FTP PUR BROADCAST FLEX 4 x 2 x AWG 26/7
AWG (approx.): -
Outer Ø mm (approx.): 7.2
Cu factor per km: 17.5
Weight kg/km (approx.): 45.0
Copper base in EUR / 100 kg: 150
Metres per Packaging Unit: 100, 500, 1000
Cut-to-length service available: yes
EAN / GTIN: 4060892563416
Customs tariff number: 85444920

Technical Data
Ethernet cable / Cat. 7 acc. to ISO/IEC 11801, DIN EN 50173, IEC 61156-6, DIN EN 50288-4-2; PoE Type 1-4
Temperature range: flexible 0°C to +50°C; fixed -40°C to +80°C
Nominal voltage: 80 V AC/DC
Test voltage core/core: 1000 V DC
Test voltage core/screen: 1000 V DC
Conductor resistance at 20°C: max. 125 Ohm/km
Loop resistance at 20°C: max. 250 Ohm/km
Mutual capacitance (nom.): approx. 43 pF/m
Rel. Velocity of Propagation: approx. 75%
Characteristic impedance at 20°C: at 100 MHz, 100 Ohm ± 5 Ohm
Propagation delay: 460 ns/100m
Delay skew: max. 10 ns/100m
Minimum bending radius: flexible 8 x outer Ø; fixed 4 x outer Ø

Structure

• Copper wire bare, AWG sizes
• Core insulation: Foam-PE
• Core identification: colour-coded, pairs: No. 1: white / blue; No. 2: white / orange; No. 3: white / green; No. 4: white / brown
• Cores stranded in pairs with optimal lay lengths
• Screen element: pairs, plastic-coated aluminium foil (St)
• Pairs stranded with optimal lay length
• Screen: braided screen of tinned copper wires, approx. coverage 46%
• Protective tape
• Outer sheath: PUR
• Sheath colour: black
• Length marking: in metres

Properties

• Resistant to UV radiation
• Halogen-free

Application
HELUEVENT® CAT.7 PUR BROADCAST FLEX is a data cable for studio and broadcast applications in the music industry. It is highly flexible and features a special PUR sheath. Suitable for indoor and outdoor installations but not for direct burial. Supports Audio over IP (AoIP), video Ethernet; IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; FDDI; ATM.

Notes

• Conductor sizes are based on the AWG measurement system, metric conductor sizes (mm²) are approximated and are for reference only.

Technical specifications

• Category: Cat. 7 (Ethernet cable)
• Standards: ISO/IEC 11801, DIN EN 50173, IEC 61156-6, DIN EN 50288-4-2
• Temperature range: flexible 0°C to +50°C; fixed -40°C to +80°C
• Nominal voltage: 80 V AC/DC
• Test voltage core/core and core/screen: 1000 V DC
• Conductor resistance at 20°C: max. 125 Ohm/km
• Loop resistance at 20°C: max. 250 Ohm/km
• Mutual capacitance (nom.): approx. 43 pF/m
• Velocity of propagation: approx. 75%
• Characteristic impedance (20°C, at 100 MHz): 100 Ohm ± 5 Ohm
• Propagation delay: 460 ns/100m
• Delay skew: max. 10 ns/100m
• Minimum bending radius: flexible 8 x outer Ø, fixed 4 x outer Ø
• Outer Ø (approx.): 7.2 mm
• Weight (approx.): 45.0 kg/km
• Sheath material: PUR (black)
• Screening: pairs plastic-coated aluminium foil (St) + braided tinned copper screen (approx. 46% coverage)
• Length marking: in metres
• Packaging lengths: 100 m, 500 m, 1000 m
• Supports PoE Type 1-4 and multiple network protocols (10Base-T, 100Base-T, 1000Base-T, etc.)
