Product overview

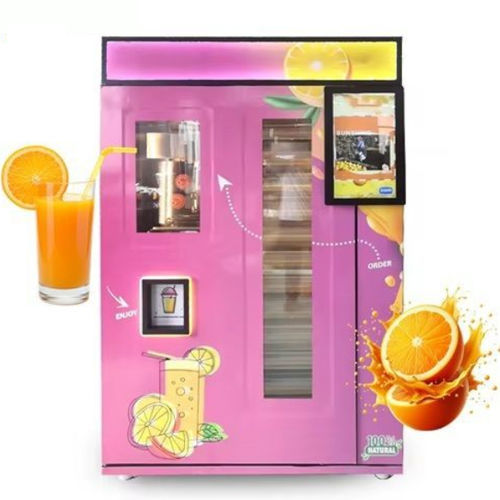

An automatic orange juice vending machine washes, slices and presses fresh oranges on demand, delivering a sealed cup of fresh juice within seconds. The juicing process is visible through a transparent window to support hygiene monitoring and product traceability.

How the machine works: Step-by-step

• User selects juice size or flavor
• The machine washes oranges
• Slices oranges automatically
• Extracts juice with stainless-steel squeezing wheels
• Filters pulp (adjustable)
• Dispenses fresh juice into a cup
• Automatically seals and serves the drink

Designed for high-traffic placements

• Shopping malls
• Airports & train stations
• Schools / universities
• Hospitals & clinics
• Gyms & sports centers
• Office buildings
• Hotels & resorts
• Convenience stores
• Supermarkets
• Theme parks

Specifications (table)
Model: FL – OJ 01
Size: 1330mm x 1080mm x 2080mm
Weight: 450KG N.W. / 520KG G.W.
Power: 300W ~ 1500W
Voltage: 220V / 110V
Cups / Lids: 60–65 cups / 60–70 lids
Cup Volume: 14 OZ
Capacity: 335 oranges, 60 fruit bowls
Temperature: 5–10 °C (full machine cooling)
Size of Orange: 40–80mm
Speed: 50–60 seconds per cup
Screen: 21.6 inch
Warranty Period: 1 year
Payment Method: CASH + CARD PAYMENT; CURRENCY Customizable
Language: All Main Languages Customizable

Additional features & services

• Fully automatic washing, squeezing & dispensing
• Transparent window to observe juicing process
• Adjustable pulp filtration
• Stainless-steel squeezing wheels for hygiene and durability
• OEM customization available (logo, color, screen UI)
• Spare parts included

Technical specifications

• Model: FL – OJ 01
• External dimensions: 1330mm x 1080mm x 2080mm
• Net weight / Gross weight: 450KG N.W. / 520KG G.W.
• Power range: 300W to 1500W
• Voltage options: 220V or 110V
• Serve capacity per cycle: 60–65 cups and 60–70 lids (cup volume 14 OZ)
• Fruit capacity: holds ~335 oranges and 60 fruit bowls
• Operating temperature (cooling): 5–10 °C
• Accepted orange size: 40–80 mm diameter
• Cycle time / speed: 50–60 seconds per cup
• Display: 21.6-inch screen
• Warranty: 1 year
• Payment: supports cash and card payments; currencies customizable
• UI languages: all main languages customizable
