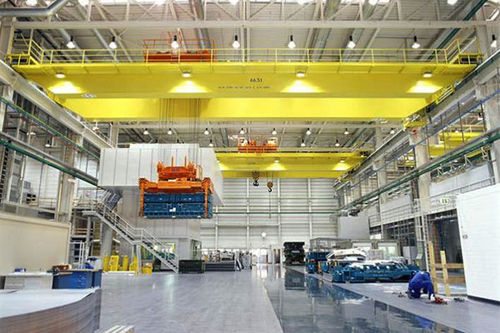

Double-girder overhead crane

aluminumlight-dutyfor warehouse

Widely used in: Factories, warehouses, etc. QY model insulating overhead crane is widely used in electrolyzing of nonferrous metal, aluminum and magnesium metallurgy workshops. This model crane is composed of box-type frame, crane travelling mechanism, trolley, electric equipment. In order to prevent the current of electrical equipment would through lifted parts endanger the driver of crane during working, the insulation equipment is set up at some suitable positions. It has over three insulation parts to protect the current of electrical equipment from endangering the driver of the crane when working.This model crane belongs to heavy working grade, in order to secure safety; main hoist mechanism is matched with double brakes Double welding box girder, beam deflection with DIN/FEM standard Steel Material: Chinese standard Q235B and Q345B Trolley rail is made of high strength hot rolled flat steel (16 Mn) Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate Maintenance walkway is located on one side of the main girder, consisting of flower pattern plate, 1050meters handrail. Introduction: QY model insulating overhead crane is applicable to workshop where smelting electrolytic nonferrous metal material,such as electrolytic magnesium.
