Product name
Support bracket components for ultra-high-voltage GIS circuit breaker

Category

• Component manufacturing and machining
• Precision mechanical processing

Product description

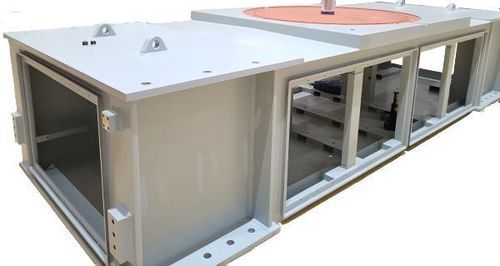

These support bracket components are installed under the main tank of ultra-high-voltage (UHV) GIS circuit breakers. The bracket assembly has a complex structure with approximately 80 distinct sub-components. Manufacturing requires strict control of welding deformation and high precision in riveting and assembly. The bent-plate flange on the bracket is a key interface connecting the upper circuit breaker tank to the lower hydraulic operation mechanism and demands tight flatness and surface specifications.

Technical specifications

• Applicable equipment: UHV GIS circuit breaker (support bracket parts under the main tank)
• Assembly complexity: around 80 sub-components
• Manufacturing requirements: strict control of welding deformation and riveting/assembly precision
• Flange flatness requirement: ≤ 0.1 mm
• Surface finish: ≤ Ra3.2
• Flange thickness variation after machining: ≤ 1 mm
• Critical dimensional tolerance control: ≤ 0.05 mm
