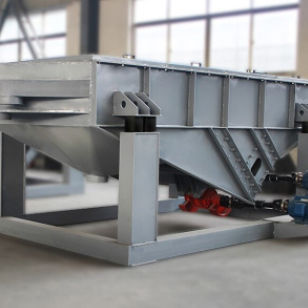

Linear vibrating screening machine ZS1020

vibratingparticle

Linear Vibrating Screen Model: ZS1020 Screening area: 1.00~6.48m2 Frequency: 960rpm Amplitude: 3~5mm Capacity: 3~120m3/h Power: 0.37*2~7.5*2(kw) Description Introduction Linear vibrating screen is designed with dual-vibration motor drive,two synchronous motors are reversely placed so that the exciter generate reverse excitation force, the exciting force generated by eccentric block cancel each other out on the parallel direction of motor axis,and stack together with the perpendicular direction of motor axis, so its trajectory is linear.Linear vibrating screen is suitable for particle size from 0.074 -5 mm,the maximum size should be less than 10mm. Working Principle and Application Linear vibrating screen is widely used in mining, coal, refractories, metallurgy, building materials and other industries.It is usually used for the screening and grading materials in large, middle and small particles. Advantages and Feathers 1.Less energy consumption,lower noise,longer service life 2.The beam and screen box are connected by high strength blot without welding 3.High accuracy screening efficiency,simple and stable structure, convenient maintenance 4.Suitable for rough screening with high capacity 5.Long travel distance for materials on the screen surface, high screening efficiency
