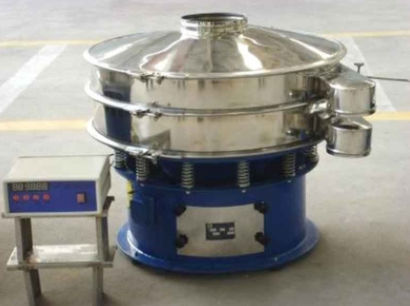

Vibrating screening machine CZS-400

rotaryultrasonic

Ultrasonic vibrating screen Model : ΦCZS400/600/800/1000/1200/1500 Screening area: 0.09/0.22/0.4/0.63/0.95/1.5m2 Frequency: 1500rpm Amplitude: 1~2mm Capacity: 0.3~4.5m3/h Power: 0.18/0.25/0.55/0.75/1.1/1.5kw Introduction Ultrasonic vibrating screen is the rotary vibration screen installed ultrasonic system and it is a high-precision ultra fine powder screening machine. It is consist of upper cover, screen frame with ultrasonic, base, vertical motor and ultrasonic generator etc. Diameter can be ranged from 400mm to 2000mm and with single or multiple screening layers.Ultrasonic vibration screen solve a series of screening problems, including adsorption, reunite, static, precision, density, light weight and other screening problems, which makes the separation of ultra fine powder easier. Working Principle Ultrasonic vibrating screen can convert the 220V,50HZ or 110V,60HZ electric energy to 18KHZ high frequency electric energy, then, convert it to mechanical vibration of 18KHZ through ultrasonic generator and transmit to the screen mesh. The super-fine powder on the screen mesh will get greater ultrasonic acceleration and avoid a series of screen mesh blocking factors. Advantages and Features 1.Prolonged mesh life by reducing screen overload and frequency of mesh cleaning. 2.More efficient sieving capacities which could ensure the quality of final product. 3.Screen surface could achieve maximum utilization, maximizing the productivity. 4.Easy to install and maintain. 5.More efficient reducing the blockages for mesh. 6.Without pollution to the material which produced by the bouncing ball.
