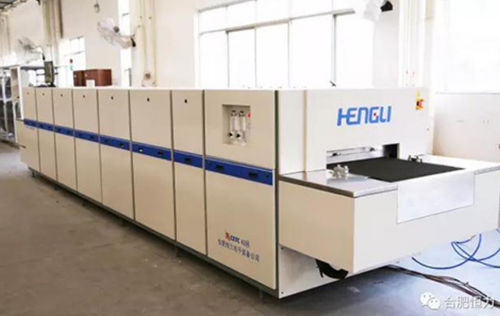

Sintering furnace
thermalconveyorroller

sintering furnace
sintering furnace
sintering furnace
sintering furnace
sintering furnace
sintering furnace
Add to favorites
Compare this product


Characteristics

Function
sintering, thermal
Configuration
conveyor, roller
Heat source
electric
Atmosphere
controlled atmosphere, air circulating
Other characteristics
continuous, industrial, custom, high-productivity, for the ceramics industry, for the electronics industry, for printed circuit boards
Maximum temperature

Max.: 1,050 °C (1,922 °F)

Min.: 30 °C (86 °F)

1,050 °C (1,922 °F)

Description

Thick film sintering furnace the atmosphere system is especially suitable for the sintering of high-precision chip resistors 1、Index parameter Rated temperature: rt-1050 C Maximum temperature: 1050 degrees centigrade Sintering atmosphere: air Heating element: heating FEC ceramic fiber heater Control temperature area: 7-11 Furnace height: 50-100mm Temperature zone length: 300/450/600mm Net band width: 200-1000MM Outline size: L (6090-7385mm) *W (1200-1400mm) *H1350mm 2、Progressiveness 1, high temperature uniformity: 900mm bandwidth, uniformity of + 2 degrees C, sintered resistance resistance deviation is less than or equal to 3%; 2, special inlet and exhaust structure design, exhaust unobstructed, sintered porcelain without pollution. 3. Precise process control. The holding time at 850 C can reach + 1min. 4. The temperature rise and fall rate is controllable, and with special transmission structure design, the transmission is stable, and the fragmentation rate caused by the equipment is zero. 5, adapt to the development of technology, can be made into nitrogen furnace for sintering copper slurry products.
