Heat treatment furnace
chamberrollerelectric

heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
Add to favorites
Compare this product


Characteristics

Function
heat treatment
Configuration
chamber, roller
Heat source
electric
Atmosphere
controlled atmosphere, air circulating, nitrogen
Other characteristics
continuous, high-temperature, industrial, high-productivity, for the electronics industry
Maximum temperature

1,350 °C (2,462 °F)

Min.: 30 °C (86 °F)

Max.: 1,400 °C (2,552 °F)

Description

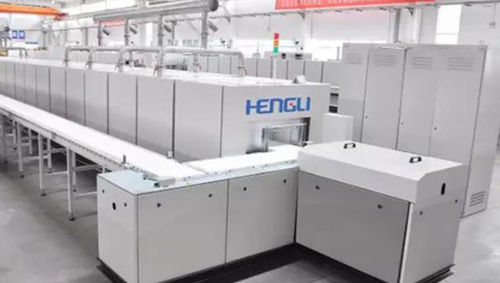

Push plate furnace This product is used for heat treatment of electronic components. 1、Index parameter Control temperature area: 6-12 Temperature zone length: 600-1000mm Maximum temperature: 1400 degrees centigrade Furnace height: 100-380mm Atmosphere: air 2、Progressiveness 1. For different kinds of functional ceramics, different furnace temperature zone numbers and lengths, inlet and outlet locations and cooling section design are provided. 2, the use of heating up and down ratio adjustment, light material furnace, efficient energy saving, temperature control accuracy, energy saving and environmental protection; 3. According to the furnace and atmosphere system designed by the process, the control stability and product yield can be improved. 4, the transmission system is reliable and convenient, hydraulic and mechanical transmission options.
