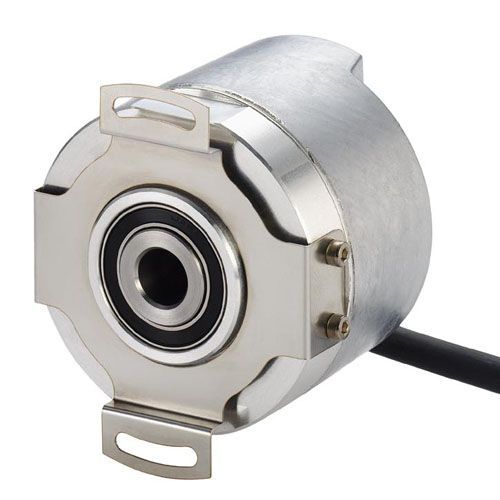

Absolute rotary encoder ACURO AD58 series
opticalgear16-bit

absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
optical, gear
Absolute encoder resolution
16-bit, 12-bit, 14-bit, 18-bit, 20-bit, 22-bit
Construction
single-turn, multi-turn
Output signal
digital, SSI
Material
aluminum
Protection level
IP40
Applications
industrial
Other characteristics
high-resolution, high-speed
Housing diameter

58 mm
(2.28 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Process temperature

Max.: 120 °C
(248 °F)

Min.: -15 °C
(5 °F)

Description

Absolute For brushless servomotors Fully digital and high-speed +120°C operating temperature 10,000 rpm in continuous operation Geared optical multiturn SSI or BiSS interface Optional sinewave 1 Vpp: harmonic distortion less than 1% 500 kHz bandwidth The AD58 multi-turn absolute encoder is an optical encoder with a multi-turn gear and optical scanning. The mechanical concept is based on a shaft assembly mounted in dual ball-bearings with a flexible torque support. As a result, these encoders are suitable for incorporating in BLDC servo motors and such demanding applications as CNC, precision positioning and high-resolution printing. The encoder is available with resolutions of up to 22 bits single-turn and 12 bits multi-turn.
