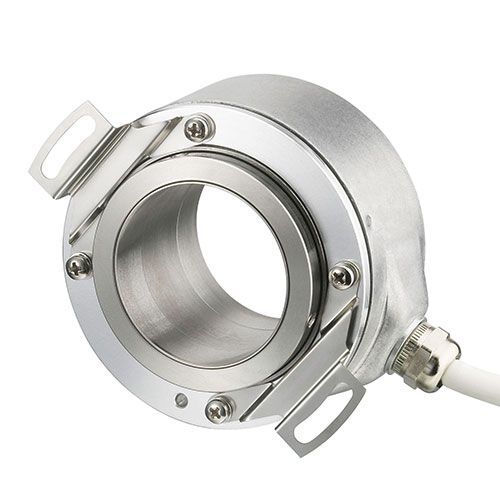

Incremental rotary encoder ICURO RI76 seriesopticalhollow-shaftRS-422
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- hollow-shaft
- Output signal
- RS-422
- Material
- aluminum
- Protection level
- IP64, IP50
- Applications
- industrial
- Other characteristics
- high-accuracy
- Housing diameter
76 mm
(2.99 in)- Rotational speed
Min.: 1,800 rpm
(11,310 rad.min-1)Max.: 6,000 rpm
(37,699 rad.min-1)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 100 °C
(212 °F)
Description
Incremental
Through hollow shaft Ø 15 to 42 mm
Outer diameter only 76 mm
Easy to install thanks to clamping ring at front or rear
Operating temperature up to 100°C
Fields of application e.g. motors, Printing machines, Lifts
The high-accuracy RI76 hollow shaft incremental encoder has been specially designed for large shaft diameters up to 42 mm. The housing diameter is only 76 mm, which makes this encoder ideal for use in motors, lifts and printing machines.
