cartridge dispensing system / for high-viscosity media / for medium-viscosity media / adhesive
300 ml Cartridge Pusher System 4 valves

{{requestButtons}}

Characteristics

  • Type:

    cartridge

  • Applications:

    for high-viscosity media, for medium-viscosity media, adhesive

  • Other characteristics:

    automatic, high-precision, robotic, single-component

Description

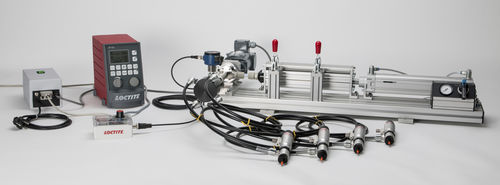

Loctite Multiple 300 ml Cartridge Pusher System

In addition to the large variety of LOCTITE standard dispensing and curing equipment, Henkel also offers custom-built equipment solutions to suit specific customer needs. Henkel engineers work closely with customers to make sure that the correct selection of adhesive is achieved and the optimum process equipment is implemented into the production line. The Henkel total systems approach ensures optimum compatibility of LOCTITE products with the customers manufacturing processes. Our experience and the unique partnership between our customers, our local sales engineers and our application and equipment engineering staff guarantee the highest level of expertise in the field of adhesive applications.

The 300 ml Cartridge Pusher System is designed to feed any Loctite pumps or valves out of 300 ml cartridges with a high pressure feeding pump (eccentric rotor pump) and optional with a pressure switch to keep the feeding pressure stable and consistent. It interacts with all of the Loctite standard EQ like controllers, reservoirs and Benchtop Robots. Multiple valves/pumps can be used for this system.

This system is available for one valve/pump or multiple valves/pumps.
