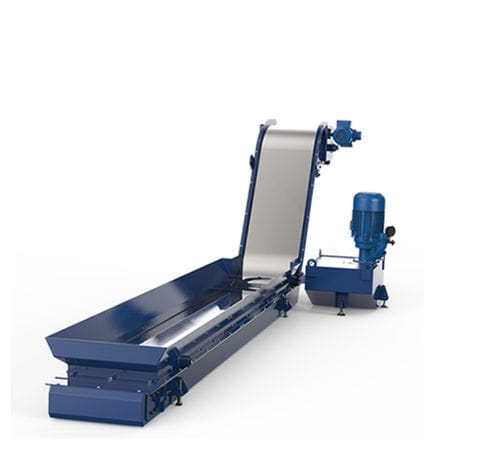

Magnetic belt conveyor

Z typetransportchip

Intended for ferrous material applications with chips (40 micron and above),small parts, or scraps. Our closed oil system lubricates all internal partsautomatically, resulting in minimal maintenance, no oil refills, no manually lubricating bearings or bushings. All magnetic conveyors can be customdesigned to suit your application, with widths from 102 mm to 1066 mm available and systems that can handle a range of 0 lbs to 12,000 lbs per hour. FEATURES Closed Oil System: Never needs to be refilled or maintained Heavy Duty Die Springs: Keeps infeed sprocket and tail shaft adjusted properly Sunflower Based Oil High Temperature Resistance: Rare earth magnets up to 176ºF Ceramic magnets up to 450ºF (magnet strength declines above these temps) Conveyor Speed Options: 25, 30, 45, 60 ft/min. OPTIONS Coolant Tanks Coolant Filtration Part De-magnetizer Dimpled Slider Bed: Prevent hydro-locking Manganese Slider Bed: For heavy-duty applications Custom Discharge Chutes: Manual adjust, tipple, various angles Standard Incline Angles (º): 30, 45, 60, 75, 90 Covered Chip Chutes Motor Voltage: 110, 230, 460, 575 Casters APPLICATIONS Wet or dry applications Fines, small or broken chips, scarf: For particles 40 microns or larger Parts and large stampings Up to 8" (203 mm) long - Larger requires samples and testing - Typically limited by width of conveyor Central conveyor system When all material is ferrous
