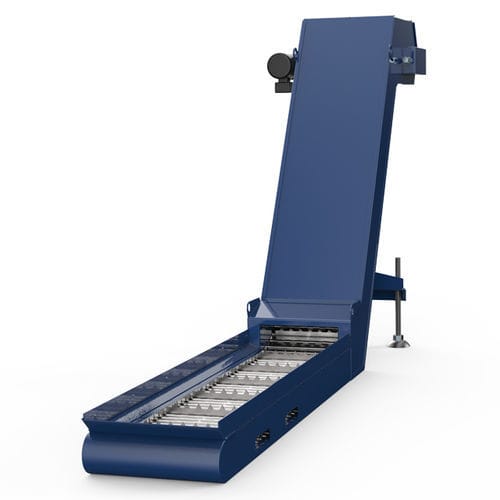

Chip conveyor
chainhingedinclined

chip conveyor
chip conveyor
chip conveyor
chip conveyor
Add to favorites
Compare this product


Characteristics

Technology
chain, hinged
Form
inclined
Sector
for the automotive industry, for the metallurgical industry, for the aeronautical industry
Transported product
chip
Other characteristics
for heavy-duty applications, metal belt
Speed

Max.: 3,300 mm/min
(2.17 in/s)

Min.: 800 mm/min
(0.52 in/s)

Description

A proven conveyor solution for a variety of materials, chip types, and chip loads. Hinge belts, the most common conveyor type, can be modified to handle more troublesome waste like tough scrap and heavy parts. •Overload/jam protection •Varibale speed drive 0.8 m/min - 3.3 m/min •Paint textured blue, white, grey, black (standard) custom colors as required •Incline angle 60° / 45° (standard) custom angles as required •Low profile design Options •Belt type plain, perforated, dimpled, combo •Belt pitches 1.5" (38.1), 2.5" (63.0), 4" (101.6), 6" (152.4) •Cleats serrated, flat, inverted "v", custom •Integrated coolant tank •Coolant filtration •Heavy-duty impact plates for heavy scrap or parts •Top hat cover for bundled chips •Hinge kit service / replacement parts APPLICATIONS • Aluminum / Brass / Steel • Bushy / stringy / broken chips • Mixed chip loads • Heavy duty scrap or remnants LIMITATIONS • Swarf, fines, cast iron
