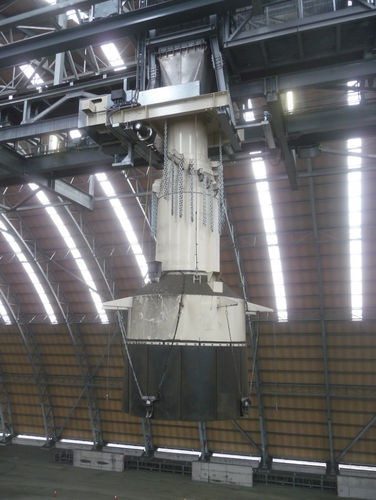

Telescopic loading spout NZO800DH

Telescopic spouts type NZO800DH are used for dust free loading of dry, dusty bulk solids into stockpiles. OPERATIONAL QUALITIES max. loading rate up to 1200 m3/h particle size 0-200 mm connection flange DN 800 pipe for the connection to the external filtration standard operational temperature -20 °C/+80 °C motor drive 5.5-15 kW loading conduit consisting of internal telescopic tubes and/or external textile bellows DESIGN electric winch with limit switch rope switch level sensor - tilt type (4 pcs) skirted outlet Additional features electric control box design for ATEX design for non-standard temperature (-40 °C/+150 °C)
