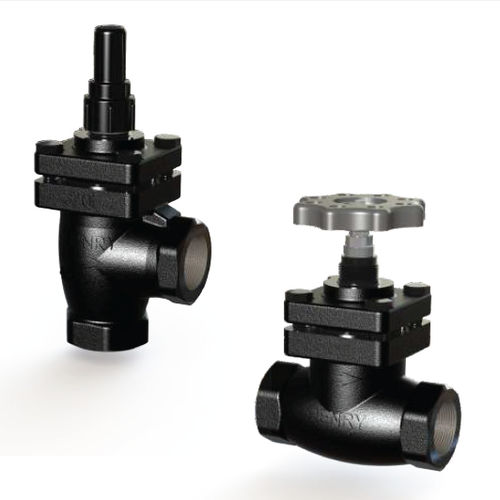

globe valve / manual / shut-off / iron
C3x0G, 3x0G series

{{requestButtons}}

Characteristics

  • Type:

    globe

  • Operation:

    manual

  • Function:

    shut-off

  • Body:

    threaded, angle seat, iron

  • Applications:

    industrial

  • Other characteristics:

    for ammonia

  • Pressure:

    28 bar (406.1 psi)

Description

The main functions of the Shut-Off Valve are to start or stop fluid within the particular circuit it is installed.

Applications
The Henry Technologies’ range of Globe and Angle Shut-Off Valves is used for isolation purposes, primarily within ammonia refrigeration systems. The threaded end series are a lower cost option to manually control flow in a pipe. Henry Technologies’ Shut-Off Valves are suitable for use with ammonia, HCFC and HFC refrigerants and their associated oils, as well as other industrial fluids non-corrosive to ductile iron, steel, Teflon and synthetic rubber.

Main Features
•Non-rotating self aligning swivel seat disc with fully retained Teflon seat ring
•Lower cost than flanged designs
•Backseating stem to a I tow for replacing stem packing while under pressure
•Protective painted finish
•Valve bonnets threaded to accept Henry Seal Cap
