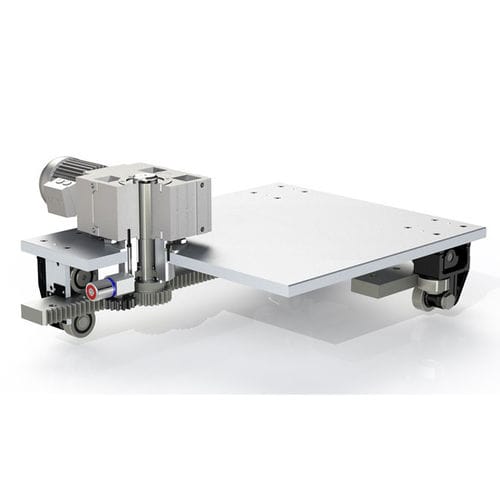

Skate wheel linear motion system MHD series

automaticmaintenance-freesilent

Designed to transport heavy automation equipment, MHD track roller system accommodates high offset and overhanging loads, and is ideally suited to be used as a 7th axis robot transfer. 7th axis robot transfer – MHD track roller system easily accommodates high offset and overhanging loads up to 136kN, making the system ideally suited to being used as a 7th axis transfer system for robots. Enhanced strength in downward direction – For larger robots with high emergency stop loads, a version using three taper roller bearings is available boosting strength in the downward direction. Hardwearing – Large wheels with axial capacity make the system tolerant of debris, misalignment, disturbance to joints and accidental damage. Low maintenance and durable – Sealed roller bearings are combined with hardened and precision ground flat tracks providing a reliable and low maintenance solution for heavy loads. Simplified installation – The lower bearing wheel of each block can be easily removed, allowing easy assembly onto the tracks by lowering the carriage from above. Carriage plates can be made to incorporate gearboxes, motors and other drive elements Spur or helical gear drives allow for high driving forces up to 102kN No restriction to system length, racks also be joined to create the desired length Adjustable hardened scrapers with integrated lubricators remove debris from the track surfaces Optional lubrication pinion Concentric and eccentric lubrication pinions available Roller size ø144mm available for maximum load
