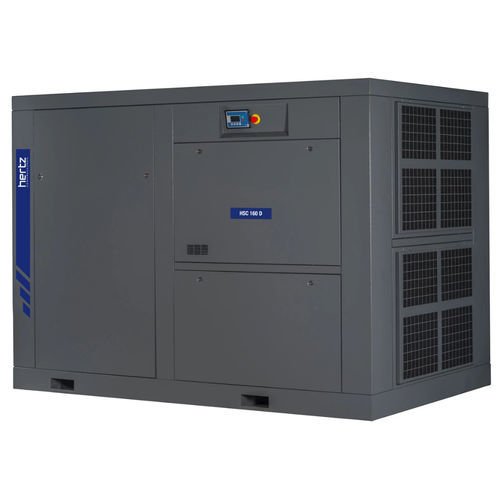

Rotary compressor HSC D series

airelectrically-poweredstationary

Delivers high performance, reliability and durability. Directly coupled drive system. Oil injected rotary screw compressor. Responds to all requirements between 22 kW and 315 kW. For special requirements please call us. Water cooling system Heat recovery system Cold start Water separator with automatic drainge system Food grade lubricant for food production Soft-starter Variable speed drive (VSD) for fan motor (Except water cooled models) IE4 efficiency class main motor Power supply options other than 400V/3 phase/50Hz Removable acoustic canopy & rigid base plate Dry type air intake filter Full flow oil filter Electropneumatic on-off controlled suction valve Minimum pressure valve Mechanical and electrical safety systems Quick discharge valve and its silencer PLC control unit with LCD panel Cooling System Aluminum combi-cooler for oil and compressed air with Bar/Plate system Four-way thermostatic valve Silent and effective axial fan Temperature controlled stand-alone fan motor Air / Oil Separators Progressive type, deep bedded and meshed separation layers High performance design with three-stage separation Low oil carryover ≤ 3 ppm Air Intake System Featured with three control block units, a solenoid valve and a control cylinder Low maintenance intake system Two stage air intake filter system Main Motor And Drive System High efficiency 400V/3 phase/50Hz IE3 class IP55 electric motor Direct-drive mechanism with flexible coupling Motor drive system with star-delta connection Air Intake System Featured with three control block units, a solenoid valve and a control cylinder Low maintenance intake system Two stage air intake filter system
