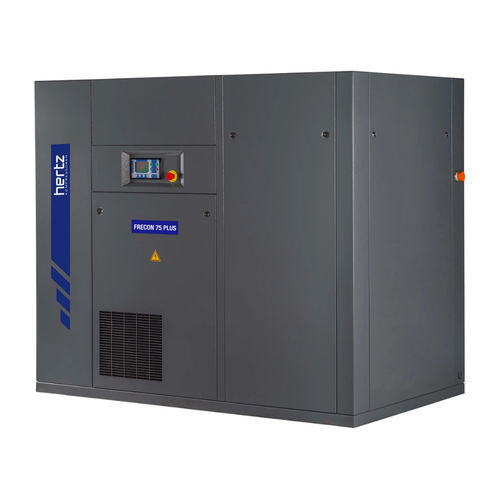

Rotary compressor FRECON plus series

airelectrically-poweredstationary

Up to 35% energy saving with variable speed and directly coupled drive system. Oil injected rotary screw compressor. Responds to all requirements between 5.5 kW and 315 kW. For special requirements please call us. Removable acoustic canopy & rigid base plate PLC control unit with LCD panel Cooling System Aluminum combi-cooler for oil and compressed air with Bar/Plate system Four-way thermostatic valve Silent and effective axial fan Variable speed drive (VSD) fan motor (except FRECON 5-22 PLUS and water cooled models) Air Intake System Featured with three control block units, a solenoid valve and a control cylinder Low maintenance intake system Two stage air intake filter system Air / Oil Separators Progressive type, deep bedded and meshed separation layers High performance design with three-stage separation Low oil carryover ≤ 3 ppm Main Motor And Drive System High efficiency 400V/3 phase/50Hz IE3 classIP55 electric motor Direct-drive system with flexible coupling VSD drive with heavy-duty frequency converter Air End New generation rotary screw air end with high capacity efficiency, durability and low energy consumption New generation bearing design with high load carrying capacity New rotor profile decreasing air leakages and required torque values Benefits Of Frecon Series Compressors Energy savings up to 35% Constant pressure Wide working pressure range Soft starting Virtually infinite starts Prevent from negative effect of current peaks Effective air supply even in high fluctuation of air demand Options Water cooling system Heat recovery system Cold start Water separator with automatic drainage system Power supply options other than 400V/3 phase/50Hz
