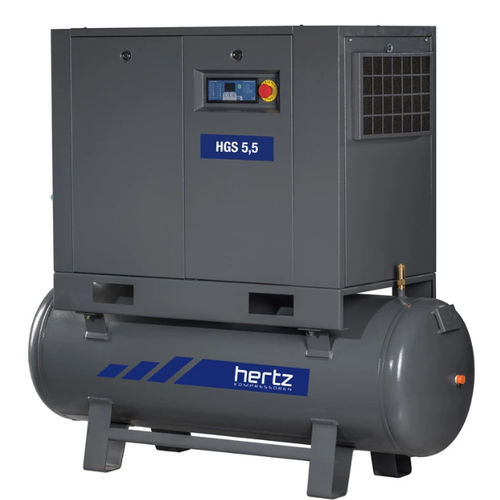

Rotary compressor H series

airelectrically-poweredstationary

Simple, Reliable and Compact design. Easy to maintenance and durable. Oil injected rotary screw compressor. Responds to all requirements between 2.2 to 37 kw. They are used safely in all applications of small and medium sized business thanks to their high performance in operation. Removable acoustic canopy & rigid base plate Dry type air intake filter Full flow oil filter Electropneumatic on-off controlled suction valve Minimum pressure valve Mechanical and electrical safety systems PLC control unit Cooling System Aluminum combi-cooler for oil and compressed air with Bar/Plate system Four-way thermostatic valve Silent and effective axial fan directly coupled to the main motor shaft (HGS 2-15) Temperature controlled fan motor (HSC 15-37) Air Intake System Low maintenance intake system Air operated valves (HGS 2-15) Featured with three control block units, a solenoid valve and a control cylinder (HSC 15-37) Two stage air intake filter system Air / Oil Separators Easily replaceable spin-on type separator Progressive type, deep bedded and meshed separation layers High performance design with three-stage separation Low oil carryover ≤ 3 ppm Main Motor And Drive System High efficiency 400V/3 phase/50Hz IE3 class IP55 electric motor Drive system with belt-pulley mechanism Belts have a working life of a minimum 25,000 hours Easy belt tensioning system Motor drive system with star-delta connection Air End New generation rotary screw air end with high efficiency, durability and low energy consumption New generation bearing design with high load carrying capacity New rotor profile decreasing air leakages and required torque values Options Versions with air receiver
