Wedge welding machine ComOn 3
automaticfor plasticsfor thermoplastics

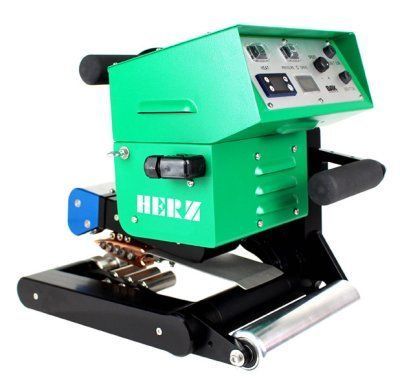

Wedge welding machine - ComOn 3 - Herz GmbH - automatic / for plastics / for thermoplastics
Wedge welding machine - ComOn 3 - Herz GmbH - automatic / for plastics / for thermoplastics
Wedge welding machine - ComOn 3 - Herz GmbH - automatic / for plastics / for thermoplastics - image - 2
Wedge welding machine - ComOn 3 - Herz GmbH - automatic / for plastics / for thermoplastics - image - 3
Add to favorites
Compare this product
Go to the Herz GmbH website for more information

Characteristics

Technique
wedge
Operational mode
automatic
Applications
for plastics, for thermoplastics
Power supply
230V single phase
Other characteristics
CE, programmable, high-speed, with servo-motor, with data logging, with GPS logging
Power

Min.: 1,700 W

Max.: 2,100 W

Output frequency

Min.: 0.05 kHz

Max.: 0.06 kHz

Weld thickness

Min.: 1 mm
(0 in)

Max.: 3 mm
(0.1 in)

Description

Overview

  • The ComOn 3 is an automatic hot-wedge welding machine designed for demanding construction and industrial sites. It is driven by a wear-free servo motor and controlled digitally to ensure consistent weld quality on thermoplastic membranes and sheets.


Key features

  • High welding speed and repeatable seam quality.
  • Digital display for temperature, speed and joining force.
  • Interchangeable plug-in heating wedge (100 / 80 mm options).
  • Integrated GPS tracker for machine location and fleet management.
  • Optional KIT for preheating/drying with a handheld device.
  • Optional version with full welding data recording available on request.


Technical specifications

  • Voltage [V]: 230
  • Frequency [Hz]: 50/60
  • Power [W]: 2100 / 1700
  • Temperature [°C]: 20 - 420
  • Speed [m/min]: 5 / 10
  • Joining force [N]: 1500
  • Wedge length [mm]: 100 / 80
  • Weldable materials: PE-LD, PE-HD, PP, ECB, EVA, TPO
  • Material thickness guideline (HD-PE): 1.0 - 3.0 mm
  • Seam measurement with test channel: 15-15-15
  • Dimensions L x W x H [mm]: 450 x 280 x 350
  • Weight [kg]: 18.5
  • Conformity marking: CE
  • Protection class: I


Applications

  • Welding of roofing membranes, geomembranes and industrial liners on construction sites.
  • On-site installation and repair work where mobility and fast setup are required.


Options and services

  • Preheating/drying KIT and handheld preheater.
  • Data-logging and reporting module available on request.
  • Service contracts, spare parts and operator training options.
