Computer-controlled coordinate measuring machine 4.5.4 SF

bridgehigh-precisioncompact

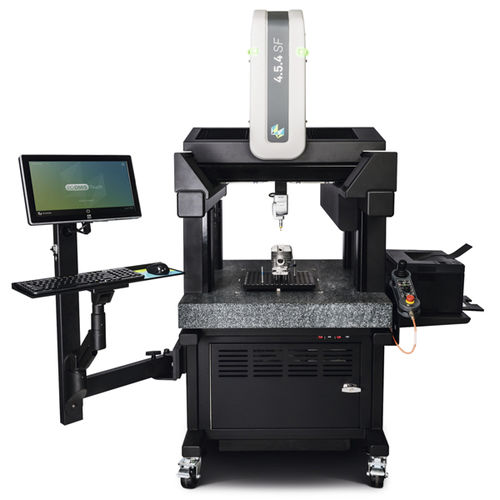

The 4.5.4 Shop Floor (SF) coordinate measuring machine excels in tough shop-floor conditions. It draws its inspiration from over fifteen years of shop floor machine production experience, and thousands of installed units worldwide. It is designed to surpass the demanding requirements of harsh shop floor environments. Its most notable feature is its flexibility. The 4.5.4 SF uses standard 110 volt outlets with no need for shop air. Its compact footprint and roll-around stand, specifically designed to fit through a standard door, lets you easily move the SF series anywhere in the shop where precise dimensional inspection is required. Optional programmable status lighting on the z-axis signals the machine’s progress throughout the measurement routine. An etched granite base defines the measurement envelope in the x and y axes. Workspace LED lighting illuminates the parts being inspected in poorly lit environments. An optional articulated arm supports the monitor and keyboard (shown here) to increase its ergonomic flexibility. The 4.5.4 SF integrates advanced thermal compensation to adjust for shop floor temperature gradients. Protective covered ways guard the machine’s scales from collecting dirt & dust, ultimately affecting the machine’s performance. For movement throughout the facility, the 4.5.4 SF has built-in vibration resistance, giving operators’ confidence in the accuracy of their measurements. For operators monitoring multiple machines at once, Hexagon has developed the Message Light System, an alerting option to inform users of any errors that can occur during measurement from across the shop floor!
