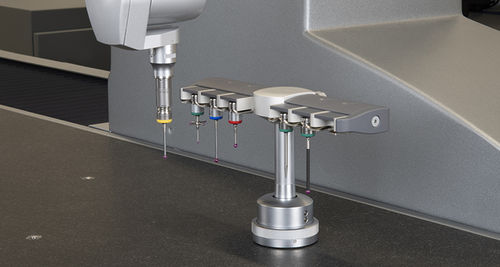

Touch probe changing system HR-MP

The HR-MP rack makes it easy to interchange probe modules and styli during measurement routines. It can store up to six probe modules with styli configurations, allowing the user to perform flexible measurements without needing to pause the operation to manually swap the probe module or styli. A mechanical base makes the rack simple to remove from the machine table, with no need for recalibration when replacing it. This means that if more space is needed on the table, or if the rack interferes with the measurement equipment, it can be removed temporarily without any additional process steps. The rack has a modular configuration, with adjustable heights ranging from 90mm to 250mm. Versatile, it comes with three ports, extendible to up to six ports and is compatible with the HP-THD and HP-TM range of touch-trigger probes and the HP-S-X1 scanning sensor. The system provides perfect protection against collisions. Not only are the probe modules and styli configurations fully sheltered, there is also no need to recalibrate the rack after a crash. Visit our webshop to find out more about the configurations offered by the HR-MP probe module and styli changer rack.
