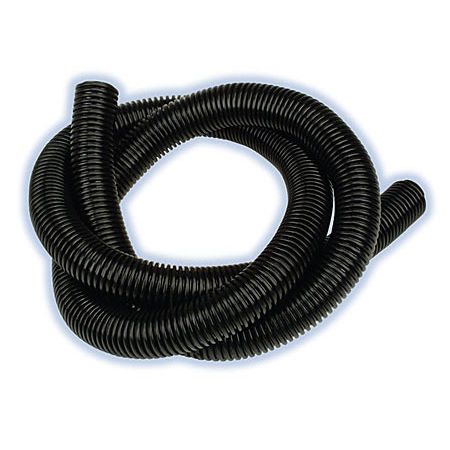

Protection conduit Heyco-Flex™ III

tubularcorrugatedfor cables

Flexible, Nonmetallic Liquid Tight Electrical Tubin FEATURES - Corrugated tubing for trade sizes 3/8˝ through 1˝. - Flame retardant, won't burn. - Nontoxic and UV resistant. - Rated for NEMA 4 and 4X applications when used with Heyco-Flex III Liquid Tight Fittings. - Rated for NEMA Type 3R applications. - Maximum flexibility, can be used in extremely tight quarters. Bend radius of Heyco-Flex III is equal to its outside diameter. - No threading of the tubing required to install. This eliminates the possibility of cutting the tubing and creating leak paths. - Easy, permanent assembly between the tubing and fittings: push the tubing over the fitting ferrule until the tubing clicks into place. - Lightweight and lower installed cost. - Quick and easy installation. - For use with Heyco-Flex III Fittings. Straight, Sweep. - Resists corrosion, oil, and water. - For use in both wet and dry applications. - Suitable for use in high vibration or flexing applications (automotive equipment, fiber optics, computer and peripherals, lab equipment, robotics, etc.). - Voltage Rating: 300V. - Mounting brackets are available. - Order Part No. 8340, HF-28 Cutting Tool, for cutting Heyco-Flex conduit and tubing cleanly and evenly. - For additional nylon conduit sizes, see HPAS. QuickSpecs Material Halogen Free Nylon 6 Certifications Certified to both Canadian and U.S. Requirements under File E121095 Flammability Rating 94V-0
