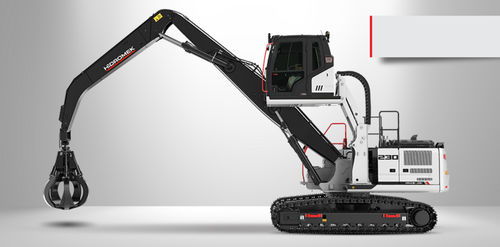

Medium excavator HMK 230 LC MHcrawlerdiesel
Add to favorites
Compare this product
Characteristics
- Size
- medium
- Locomotion
- crawler
- Engine type
- diesel
- Operating weight
23,600 kg
(52,029.1 lb)- Engine power
128 kW
(174.03 hp)- Travel speed
Max.: 5.8 km/h
(3.6 mph)Min.: 3.8 km/h
(2.4 mph)- Digging depth
4,100 mm
(161.417 in)
Description
Number of cylinders - 4
Bore x Stroke - 115 x 125 mm
Displecement - 5193 cc
Maximum Torque - 670 Nm @ 1600 rpm
Hydrualic System -
Pump Type - Double variable displacement axial piston pumps
Main Pump Flow Rate - 2 x 233 L/min
Pilot Pump Flow Rate - 20 L/min
Swing -
Type - Axial piston type integrated with shock absorber valves
Swing Speed - 12.6 rpm
