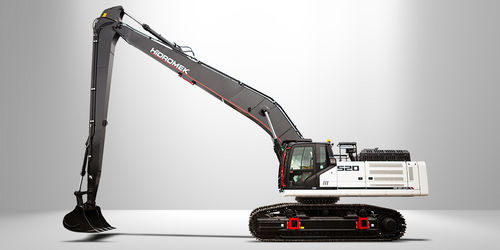

Medium excavator HMK 520 LC LRcrawlerdiesel
Add to favorites
Compare this product
Characteristics
- Size
- medium
- Locomotion
- crawler
- Engine type
- diesel
- Bucket capacity
1.2 m³
(42.378 ft³)- Engine power
362 ch
(362 hp)- Travel speed
Min.: 2.8 km/h
(1.7 mph)Max.: 4.6 km/h
(2.9 mph)- Digging depth
14.21 m
(46'07" )
Description
Number of cylinders - 6
Bore x Stroke - ø 120 mm x 145 mm
Displecement - 9839 cc
Maximum Torque - 1650 Nm @ 1300 rpm
Hydrualic System -
Pump Type - Double variable displacement axial piston pumps
Main Pump Flow Rate - 2 x 376 L
Pilot Pump Flow Rate - 29 L/min
Swing -
Type - Axial piston type integrated with shock absorber valves
Swing Speed - 7,7 rpm
