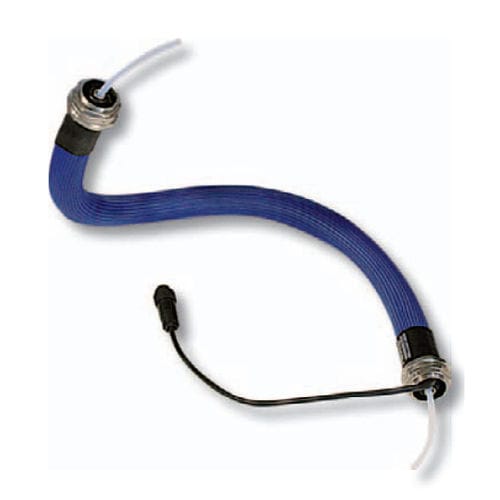

Analytical sample gas lines with replaceable inner core and cable screw fitting
Application potential: Maintaining the temperature of probe lines for motor exhaust, CO2 measurements, industrial exhaust gasses, blast furnace exhaust gasses, air testing, etc.
The core of this heating hose runs uninterrupted and unrestricted from the extraction point to the analysis unit.
Threaded cable fittings on both ends simplify assembly on housings.
This version permits quick on-site replacement of the inner core if the inside walls are contaminated.
Rated voltage - 230 V AC/DC (other voltages up to 500 V)
Rated power - Watt/metre, see type codes
above 250°C stainless steel - see Inner cores analytics
100 mm protruding on both sides seamless
Heating - heating conductor, structure according to DIN, moisture-proof with PE conductor; > 250°C not moisture-proof
Thermal insulation - depending on the operating temperature heat stabilized, close-pore silicone foam or thermal fleece, elastomer foam
Outer protective braiding - polyamide black, options - see Outer protection
