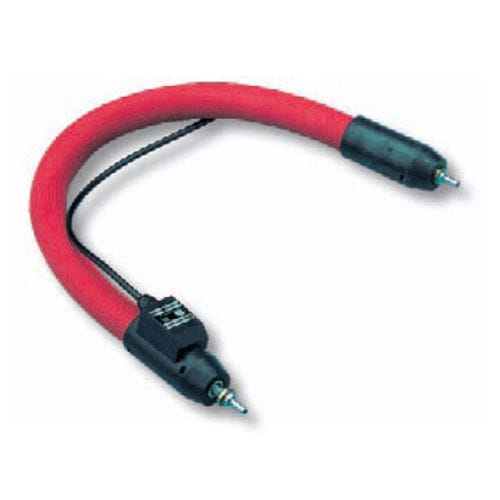

Gas heated hose H 300 C

for airPTFEPFA

Analytical sample gas lines with replaceable PTFE inner core and screwed fitting Application potential: Maintaining the temperature of probe lines for motor exhaust, CO2 measurements, industrial exhaust gasses, blast furnace exhaust gasses, air testing, etc. The special fittings made of 1.4571 steel prevent the movement or kinking of the PTFE core at the end of the analysis heating hose. A compression ring fitting can be attached. Strain relief is accomplished by way of the outer braid. Rated voltage - 230 V AC/DC (other voltages up to 500 V) Power rating - Watt/metre, see type codes Inner core DN 4 – 12mm - PFA or PTFE. see Inner cores Analytical Connection fitting - RSL special fitting 1.4571 stainless steel, screwed without transition Heating - heating conductor, structure according to DIN, moisture-proof with PE conductor Thermal insulation - heat stabilized, closed-pore silicone foam, thermal fleece or elastomer foam Outer protective braiding - polyamide black, options - see Outer protection Hose end caps - PA hard cap or elastomer cap Temperature sensor - Fe-CuNi type J, NiCr-Ni type K, PT 100 and integral control system (HTI) possible Connection cable - 3 m Plug connection - according to specification Production lengths - up to 100 m Ingress protection - IP44 (EN 60529), protection class I
