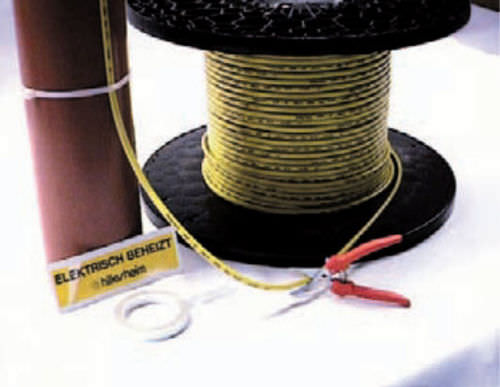

Thermoplastic-insulated heating tape HKSI 70 Ni

With HTI parallel heating tape, the entire length of the heating tape is used for temperature measurement with the (integral) HTI controller, so even temperature measurement over the entire length is achieved. Further advantage: The parallel heating tape can be cut to size in-situ and can be specifically adapted to the existing system on installation Rated voltage - max. 230 V AC Rated power at 20°C - approx. 70 W/m Rated power at 150°C - approx. 30 W/m Surface temperature - max. 200°C Heating circuit length - max. 60 m Contact clearance - 2 m Minimum bend radius - 50 mm Outer dimensions - approx. 8 x 11 mm (oval) Outer jacket - FEP Protection type - IP65 (EN 60529), protection class I PE conductor braiding - yes
