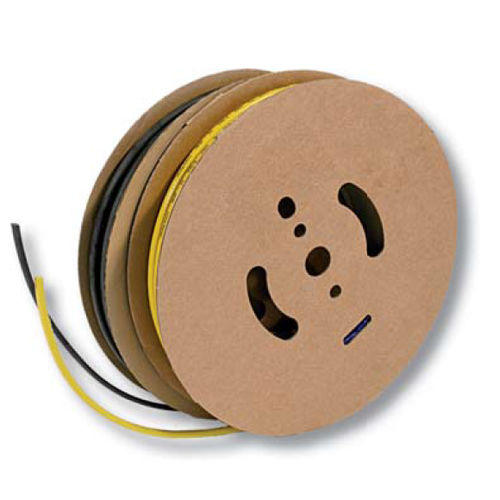

Thermoplastic-insulated heating tape HKSP 20

for pipe trace heating

Parallel heating tape by the metre for self-configuration / on a reel The HKS heating tapes were specially developed for heating industrial plants, gutters, pipes, tanks and for similar uses outdoors and in damp rooms. They can be supplied by the metre, so the tape can be routed in-situ, as required, and can be configured ready for connection using an additionally available configuration set. On request, the quoted length can be supplied ex works configured ready for connection. Holding temperature - approx. 60 °C depending on the insulation thickness on the pipe Rated voltage - 230 V AC Power rating - approx. 20 W/m Heating circuit length - max. 150 m Contact clearance - 0.7 m Minimum bend radius - 50 mm Outer dimensions - approx. 8 x 11 mm (oval) Outer jacket - PVC Protection type - IP65 (EN 60529
