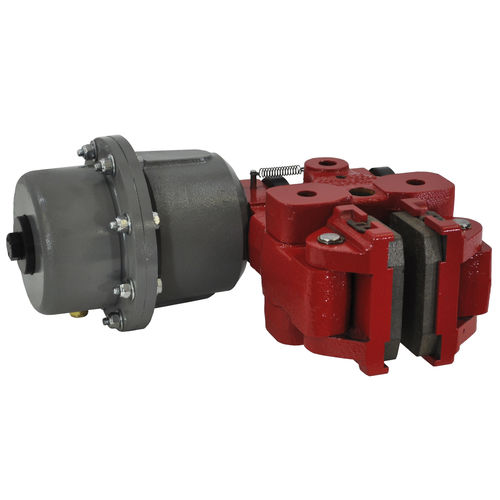

Caliper disc brake A300-T200 SA series

springhydraulic releasewith pneumatic release

The A300 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The A300 requires a minimum disc diameter of 12" and is offered in 4 sizes to accommodate a ½", 1", 1-3/16", and 1-1/2" thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers. The SA thruster is a failsafe thruster that is spring applied pneumatically released. The spring applied thrusters are offered in multiple sizes to meet the needs of our customers. The T200 SA thruster produces a maximum braking force of 930 pounds at the maximum operating pressure of 90 psi with a maximum pressure of 120 psi. Applications Amusement / Stage Equipment - Conveyors - Lifts/Elevators - Renewable Energy - Steel Industry Type: Spring Applied / Pneumatic Released
