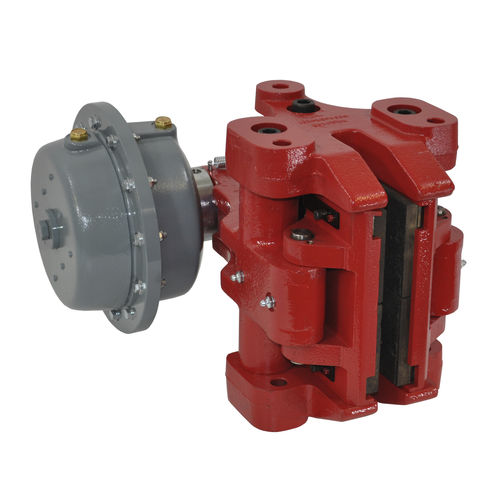

Disc brake A400-T300 SH series

caliper discspringhydraulic release

The A400 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The 400 requires a minimum disc diameter of 24" and is offered in 2 sizes to accommodate a 1" and 1-1/2" thick disc. The design of the caliper allows the user to quickly convert between right and left-handed designs eliminating the need for multiple part numbers. The SH thruster is a failsafe thruster that is spring applied hydraulically released. The spring applied thrusters are offered in multiple sizes to meet the needs of our customers. The T300 SH thruster produces a maximum braking force of 5580 pounds at the maximum operating pressure of 1720 psi with a maximum pressure of 2150 psi when used with the A400 caliper. Applications Amusement / Stage Equipment - Conveyors - Marine/Shipping - Renewable Energy - Steel Industry Type: Spring Applied / Hydraulic Released
