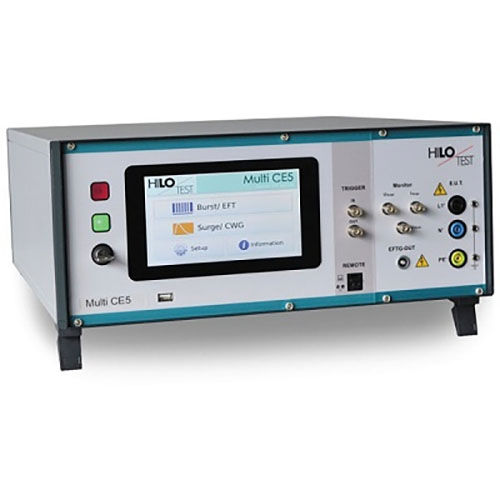

EMC testing system Multi-CE5

for electrical installationsfor power systemscompact

The Multi-CE5 features a microprocessor controlled user interface and a capacitive 7" touch screen unit. For ease of use, the D.U.T output is placed on the front of the generator. In its basic configuration, the Multi-CE5 includes an Electrical Fast Transient Generator (EFTG), a Combination Wave Generator (CWG) and a Coupling-/Decoupling Network (CDN) for single-phase power supply lines. The software program CE-REMOTE allows full remote control of the test generator via Ethernet light guide as well as recording, evaluation and documentation of test results, according to IEC 17025. To record the wave shape of impulses, it is equipped with an Impulse Recording Function (IRF).
