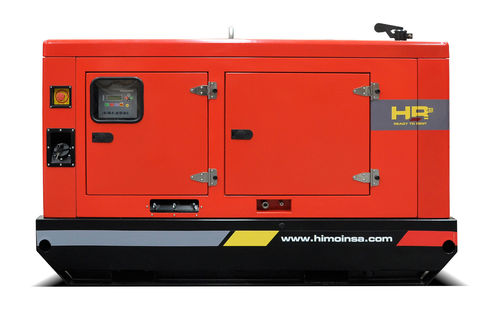

Diesel generator set HRYW-17 T5three-phase50 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- water-cooled
- Applications
- rental
- Power in kVA
Max.: 18.3 kVA
(24.88 hp)Min.: 17.1 kVA
(23.25 hp)- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
This 4-stroke diesel engine has a rated output of 16,4 kW PRP with a 17,7 KW standby. The injection is direct, and the aspiration is natural. The bore and stroke is 88 x 90 mm and the displacement is 2,19 L. The system for cooling is coolant or water-cooling.
The compression ration is 19,1. The fuel usage by standby is 4,63 l/h and fuel usage by PRP percentage are: 4,27 l/h at 100%; 3,29 l/h at 75%; and 2,40 l/h at 50%. The air filter is dry, and the electrical system runs on 12V.
