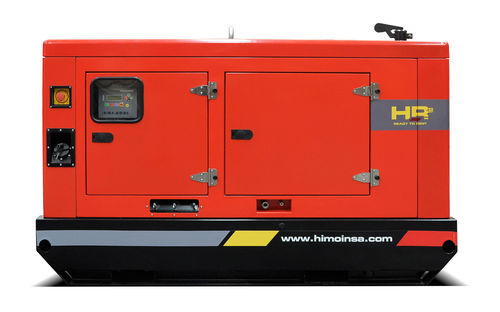

Diesel generator set HRYW-45 T5

three-phase50 Hzdirect fuel injection

The Himoinsa 4TNV98T ZGGEH is a diesel 4 stroke direct-injected engine that is water-cooled and turbocharged. This unit has a 3.3L displacement and four cylinders. This is used with a 12V electrical system. The displacement is at 3.319 L, bore and stroke at 98 x 110 mm and a compression ratio of 18.1. Its cooling system utilizes coolants and its lube oil specifications are API, CI-4 and CF-4. Fuel consumption on standby is 10.11 l/h, 100% PRP at 9.16 l/h, 75% PRP at 6.94 l/h and 50% PRP at 4,89 l/h. Lube oil consumption at full load is 1.27 g/kwh, total lube capacity is 11.2 L and total oil capacity is 9 L. Its specifications include a dry type air filter, radiator with fan, dry air cleaner, electronic governor, guards for hot and mobile components as well as for the radiator, and water separator decanting filter.
