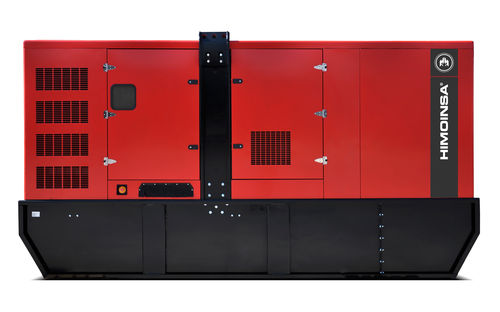

Diesel generator set HRDW-670 T5

three-phase60 Hzdirect fuel injection

This device is a Doosan engine model HRDW-670 T5 P222FE type, made by the Himoinsa company. This device offers users a output that is rated at 553 kW prp and on standby is rated at 596 kW. The turbocharged diesel engine features a 4 stroke cycle. The engine is after cooled as well as being a direct injection type, 128 x 142 mm. of bore and stroke are provided by this machine. Coolant is used by the cooling system on this device, and there are 12 V in the cylinder arrangement, the device displaces approximate 21.927 liters. It uses lube oils of API CH4 SAE 15W40 or 10W40 types, and the compression ratio for this machine measures 14.2:1. When fuel compression is at 100%, it has a PRP of 148.5 liters per hour, at 75% fuel compression, the PRP is at 109.8 liters per hour. At 50% fuel compression, the PRP is at 73.5 liters per hour, and at 25% fuel compression, the PRP is 38 liters per hour. On standby, the fuel compression is at 160.4 liters per hour. This engine holds a total oil capacity of 40 liters, and features 24 volt electrical system.
