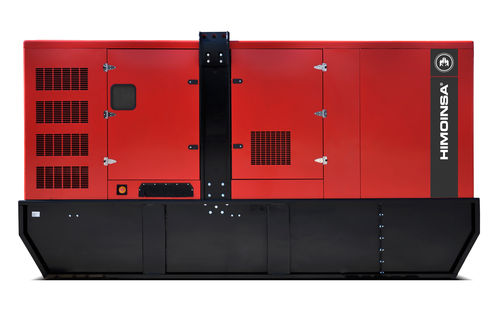

Diesel generator set HRDW-655 T6

three-phase50 Hzdirect fuel injection

This engine is turbocharged and aftercooled. It is cooled by water and uses a coolant cooling system. It has a bore and stroke of 128 x 142mm. It's displacement is 21,927L. The compression ration is 14,2:1. The fuel usage by standby is 191,7 l/h with other fuel usages by PRP as follows: 175,1 l/h at 100%; 127,6 l/h at 75%; 85,5 l/h at 50%, and 46,4 l/h at 25%. The oil amount is 40L. The air filter is dry, and the inside diameter is 81mm. The electrical systems runs on 24V, and has a radiator with a working fan.
